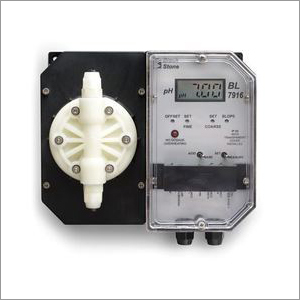

pH Controller and Chemical Dosing Pump

pH Controller and Chemical Dosing Pump
pH Controller and Chemical Dosing Pump
Product Code : BL-7916
Brand Name : HANNA EQUIPMENTS
Product Description

Our company has sculpted a remarkable place in the market as a reputed manufacturer and supplier of pH Controller and Chemical Dosing Pump. The pump is enclosed in a modular housing for maximum protection. Best quality materials and components are used for manufacturing  this pump. We check this pump on defined quality parameters to provide the best range to clients. This pH Controller and Chemical Dosing Pump comes in different specifications for clients.

Features:

  • Light weight
  • Sturdy in nature
  • Easy installation

Further Details:

The controller/pump series of instruments are enclosed in a modular housing for maximum protection. These pumps utilize the one-piece polypropylene, injection-molded housing. Since there are no joints or screws holding different sections of the housing together, the case is extremely rugged and sturdy. This series of instruments will mount easily in your plant using a minimum of wall space. The controls and pump head are located in the front to allow easy access.

Product Details:

  • pH controller and dosing pump in one compact unit.
  • ±0.01 pH accuracy with unbeatable performance.
  • Isolated 4 to 20 mA recorder output.
  • Proportional dosing slows the pump down when the measured pH level approaches the set valve, which ensures precise dosage and avoids costly waste of chemicals due to overdosage.
  • Alarm contact is activated whenever the pH value varies more than 2 pH units from the set point.
  • Auxiliary contacts allow the user to attach a mixer or priming pump that is activated only when the pump is dosing.
  • PVDF, FPM/FKM and PTFE materials are used for all parts that come into contact with liquid.

Specifications:
Range 0.00 to 14.00 pH
Resolution 0.01 pH
Accuracy ±0.01 pH
Flow Rate 13.3, 11.7, 10.1, 9.0, 7.8 (LPH)
Input Impedance 1012 Ohm
Dosage proportional, acid or base, user selectable
Calibration offset: ±1 pH with trimmer; slope: 85 to 115% with trimmer
Recorder Output 4-20 mA (isolated)
Dosing Contact 1 isolated contact, 2A, Max. 240V, resistive load, 1,000,000 strokes
Alarm Contact 1 isolated contact, 2A, Max. 240V, resistive load, 1,000,000 strokes
Power Supply BL 7916-1: 115V ±15%; 50/60Hz (40W)
BL 7916-2: 230V ±15%; 50/60Hz (40W)
Environment 0 to 50°C (32 to 122°F); RH max 95% non-condensing
Dimensions 221 x 142 x 181 mm (8.7 x 5.6 x 7.1')
Weight 5 kg (11 lb.)
